StartUp Bundle #2

"All the GT rack effect setup parts you need to get started, except for the effects modules"







Startup Bundle #2 helps you jumpstart a modest-sized rack effect setup with discounted bundle pricing.  It uses smaller footswitches that offer an incremental approach to migrating to rack effects.



Configuration

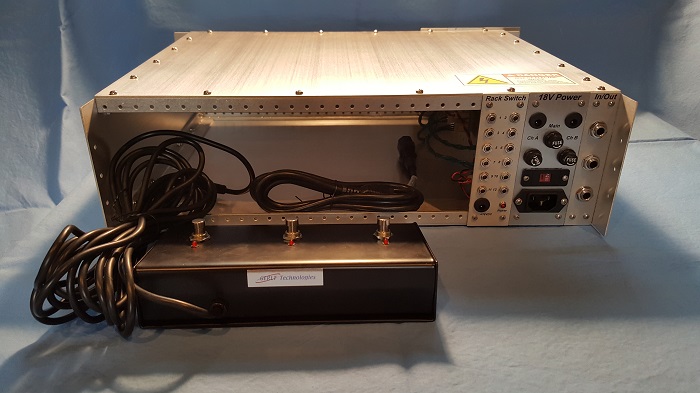

There are several ways to configure "all the other stuff" you need besides the effects modules for your GT effects.  This configuration is what we would call a "smaller" startup configuration.  It includes:

This is everything you need to start your first order configuration.  Each enclosure has 17" of horizontal space for modules.  The three included modules take up 4.5", leaving you with 12.5" for effect and Filler Modules which together must fill the entire 12.5".  All you need to complete your configuration is to select 12.5" of effect and filler modules.  One module must be a right wing module.

This bundle is designed primarily for those that use fewer effects and don't need a 12-Button Footswitch to control them all.  You start with a single 3-Button Footswitch, but you can add up to three additional 3-Button Footswitches if you need more than just the one included in the bundle.

If your selected effects modules take up more than 12.5", then you'll need to add in another 3U enclosure, which must also be filled with 17" of modules, either effects or filler modules.  In that second enclosure, you must have one module that is configured for the left wing position and one module configured for the right wing position.  The descriptions for each module will tell you if they are available in wing configurations and describe any module configuration constraints for wing positions.  Of course, we're happy to help with any of this - just send us a note at:

This email address is being protected from spambots. You need JavaScript enabled to view it.

In addition to the modules, you'll need some cables, which we don't (yet) offer:

  • switching cables to connect each effect module to the Rack Switch module.  These are inexpensive and widely available from cable dealers in various lengths, often with quantity discounts.  Usually 12" lengths are sufficient, but since the enclosure is 17" wide, you may need some 18" ones, too.  Or just get 18" ones and cable tie the extra length.  See Switching for details.
  • two standard DC power daisy chain cables like you probably already use for your pedals.  See 18V Power for details.
  • standard 0.25" (mono or stereo) instrument/audio patch cables to connect everything in the back (like the ones you use with pedals on your pedalboard):
    • one from Guitar Pass Thru to your first effect module input
    • one from each effect module output to the next effect module input
    • one from your last effect module output to the Amp Pass Thru module

We'll probably start offering at least the switching and VGA cables in the future.  If you are interested or for some reason have difficulty sourcing cables, let us know and we'll try to move this up in priority on our "To Do" list.

If you end up with a multi-enclosure configuration, you may need some longer switching cables to reach from the Rack Switch module in one enclosure to the more distant modules in the second enclosure.  Similarly, you may need to chain some additional DC power daisy chains.  You may also need a couple of longer audio patch cables.

Of course, you'll also need a guitar, guitar cable, amp, and amp cable, but you already have that.



Buffers

No buffers are included in the base configuration



Options

Please note that the option prices below are available only with the purchase of this bundle.  Similar options are available if you purchase the modules, enclosures, etc separately.

  • In/Out Pass Thru Buffers - See In/Out Pass Thru and our Buffer modules for details about the buffer options
  • Additional 3-Button Footswitch units if you need more than three footswitches to control your selected effects
  • Rear Rack Supports - Strongly recommended if your rack has rear rails, particularly if you gig or will be moving your gear around.  See 3U Enclosure for details.  If you will be putting your enclosure in a rack and you don't use the rear supports, if possible put something below the rear of the enclosure to support some of the weight back there so that the front wings are not the only support points.
  • Adhesive Feet - If you aren't racking your enclosure and prefer to place it on a level surface instead, it is recommended that you put some adhesive rubber feet or something similar on the bottom of the enclosure.  The edges of the enclosure and screw heads could scratch the surface of whatever is below the enclosure.  Also, the front panels of the modules hang below the bottom of the enclosure.  It is best if the panels do not sit on any surface, so use feet or "bumpers" as they are often called that are tall enough to hold the front panels off the table or whatever is below the enclosure.  These particular adhesive feet are nothing special - just large enough to do the job.  You can also find suitable feet at your local hardware store.  They stick on pretty well, but you'll likely have one come off and get lost eventually.



You can also specify the order for us to mount your modules (included ones and effects and fillers you choose) in the enclosure(s).  The wing modules must go in the extreme left and right positions, of course.  We normally put the 18V Power module next to the left wing module, and the Rack Switch next to the 18V Power module, but that can also be changed.  It is easier to install future modules if all your existing modules are grouped to the left or right without fillers between them.  By default, that would group all the filler modules, if any, on the right, next to the right wing module.

If you have filler modules in your full configuration, try to make them 1.5" or 2" wide.  If you have enough filler modules, you may want to get a mix of 1.5" and 2" modules if that works out for the space you have.  Most modules are those widths.  Then you can swap out a filler module for an effect module and hopefully avoid needing another filler module of some other size at that time.  If you are really planning ahead and know the widths of future modules you might likely order, then perhaps get filler modules of those widths.

By default, everything you order will come fully assembled.



Base Configurations

Part # Description List Price
BNDL-STARTUP-2 StartUp Bundle #2 $689



Options

Part # Description List Price
BOPT-IOPT-BUF Buffered In/Out Pass Thru $49
BOPT-3URSP Rear Rack Support (pair) $29
BOPT-3BFSW Additional 3-Button Footswitch $59
BOPT-3UAF Adhesive Feet for 3U Enclosure $5



Parts

Replacement parts are available for each item in the bundle.  Visit the page for each item for details and pricing.



Hopefully this simplifies the configuration process for your order.  If anything is unclear or you need help selecting modules, customizing modules, or anything else, just send us an email at Support.
