FBomb

"Famous always-on tone enhancer"





The FET Bomb or "FBomb" boost rack effect module is based on the Echo Plex 3 pre-amp circuit.  It compares to the numerous effects that are also based on that circuit, such as the Xotic EP Boost, Catalinbread Epoch Pre, Dunlop Echoplex Preamp, MXR Echoplex Preamp, Chase Tone Secret Preamp, ClinchFX EP-Pre, and others.  The circuit doesn't really provide much boost, unless modified to specifically do so.  Instead, it provides some nice "polishing" and tweaking of your tone that works well with virtually any amp or effect chain.  Typically placed at the end of the chain, just before the amp, it becomes an always-on effect, giving you a little something-something you won't want to be without once you get addicted.



Description

The Echo Plex 3 tape delay system was a popular effect in its day, even if it was a bit finicky to maintain.  Old units in good repair, or the new modern re-makes available, command steep prices.  The old units were a bit crude compared to effects today.  One of the crude features was that they did not have a true bypass when switched off.  The guitar signal still went through a preamp and was affected by other "stuff" in the circuit.  Crude, yes, but lucky.  Players noted that even when the Echo Plex was off, their tone still sounded better than without the Echo Plex at all.  There is something magical in that non-bypassed circuit that makes your tone more pleasing.  It's the kind of thing your turn on and leave on all the time.  You might not notice it that much if you leave it on all the time, but try turning it off - noooo!!!

People have been arguing for years about what exactly causes the “magic”.  Is it the FET transistor?  The slight tweaking of the frequencies and phases?  Something else in all those tape recording and playback components?  The internal voltage used?  The vintage components?  We think there are multiple design factors coming together to yield one of those difficult-to-explain happy circumstances, sort of like the weird capacitor values in the Univibe that are key to that 'vibe tone.  Whatever it is, players have found it definitely sweetens their tone and can be left on all the time, likely as the last effect going into their amp, the same way people used the original Echo Plex units.

There are numerous Echo Plex style preamp/boost pedals, with considerable variation in their circuits.  That seems a bit odd, since they all attempt to reproduce the sound of a specific, documented pre-amp circuit, but it’s true.  The variants probably sound a bit more alike than they do different, but we've designed our FET Bomb or "FBomb" to compare to a couple of popular variants.

If you prefer a design that is closer to the actual Echo Plex 3 preamp design, making some effort to factor in the effects from the rest of the record/playback circuit, and doing the phase tweaking of the original, then our ThermoNuke configuration is similar to the ClinchFX EP-Pre pedal.  You won't get much boost out of it, but it has that always-on tone polishing going on.

If you prefer a design with more boost, and you don't care about being true to the Echo Plex 3 design as long as you get similar results, you might prefer the Hydrogen configuration, which compares to the Xotic EP Boost.  You can "set and forget" the level and turn it into that always on tone enhancer.



Configurations

  • FBomb - ThermoNuke  Compares to pedals that accurately capture the Echo Plex 3 pre-amp, such as the ClinchFX EP-Pre.  This configuration includes a Volume control (that barely goes past unity), and a switch for Early, Late, or Fat tone sculpting.  Early and Late refer to the early and later versions of the Echo Plex 3 pre-amp circuit, which were slightly different.



  • FBomb - Hydrogen  Compares to pedals that tweak the Echo Plex 3 pre-amp circuit, usually giving it a larger boost capability.  The Xotic EP Boost is an example.  This configuration includes a Boost control, a Hot switch to increase the boost level, and a Saturation switch.





Buffers

No buffers



Options

  • Voltage - The ThermoNuke internally uses a pretty high voltage and shouldn't be changed.  The Hydrogren runs at 9V, but could be run at 12V or 15V if you need more headroom.



Unlike most of our modules, we don't recommend tweaking this circuit.  It does what it does and needs all the elements of its design to do it.  If you need a little something different, check out some of our other FET boosts:  Sabre, Woody, and Edge Boost.



Front Panel

  • Volume ("Boost" for Hydrogen)
  • Early / Late / Fat switch (ThermoNuke)
  • Saturation switch (Hydrogen)
  • Hot switch (Hydrogen)

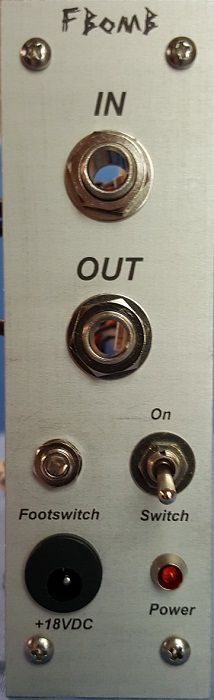

Rear Panel

  • Audio In
  • Audio Out
  • On/Off Footswitch
  • On/Off Override
  • DC Power
  • DC Power LED



Module Width

  • 1.5"
  • 2" left wing available
  • 1.5" right wing available



Power Consumption (aprox)

15mA



Base Configurations

Part # Description List Price
MOD-FBOMB-THERMO FBomb ThermoNuke configuration $189
MOD-FBOMB-H2 FBomb Hydrogen configuration $189



Options

Part # Description List Price
MOPT-FBOMB-TONE Custom voltage for Hydrogen configuration $0



Parts

Part # Description List Price
MPT-FBOMB-CA Replacement pot, switch, jack, LED cable assembly $19
MPT-FBOMB-KNB Replacement control knob $2
MPT-FBOMB-PB Replacement power board $29
MPT-FBOMB-SB Replacement switching board $29
